# Running the PIDL Compiler

## 1. Windows

You can use the [**PIDL add-on**](/proudnet.eng/proudnet/pn_utility.md#pidl-compiler-add-on) to create and compile PIDL files conveniently, but if it is not available, please set up <mark style="color:orange;">PIDL Custom Build</mark> in the following way.

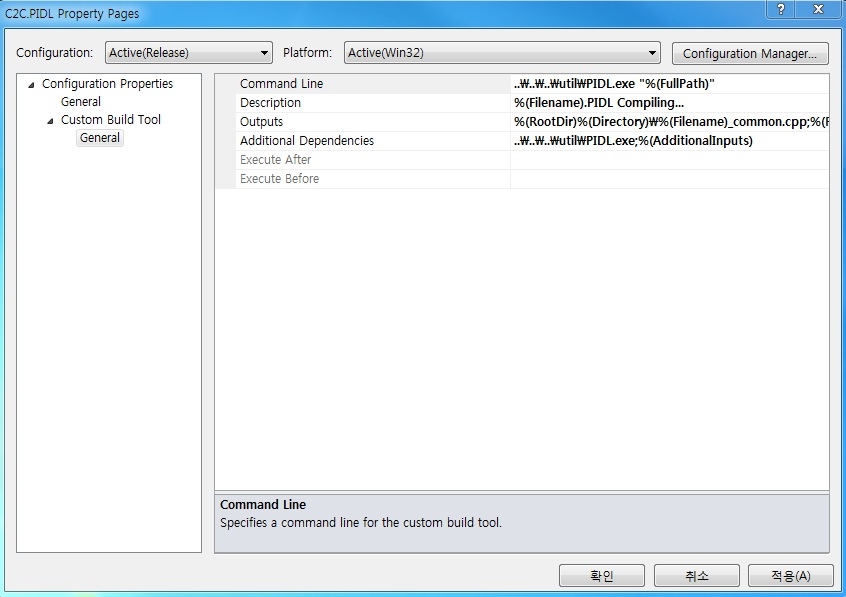

#### 1-1. Setting up <mark style="color:orange;">PIDL Custom Build</mark> in a Visual Studio project

<figure><img src="/files/c6ffkwkMMP52xC13COfm" alt=""><figcaption></figcaption></figure>

Here are the details of each of the build settings.

> **Command line**: <mark style="color:orange;">\<Path where PIDL.exe is located>\PIDL.exe "%(FullPath)" -outdir .</mark>&#x20;
>
> **Description**: Compiling %(Filename).pidl ...&#x20;
>
> **Output**: %(RootDir)%(Directory)%(Filename)\_common.cpp;%(RootDir)%(Directory)%(Filename)\_common.h;%(RootDir)%(Directory)%(Filename)\_proxy.cpp;%(RootDir)%(Directory)%(Filename)\_proxy.h;%(RootDir)%(Directory)%(Filename)\_stub.cpp;%(RootDir)%(Directory)%(Filename)\_stub.h;%(Outputs)&#x20;
>
> **Additional dependency**: <mark style="color:orange;">\<Path where PIDL.exe is located>\PIDL.exe</mark>

{% hint style="warning" %}

* <mark style="color:orange;">PIDL.exe</mark> is located in the <mark style="color:orange;">util</mark> folder of ProudNet.
* You must set the same settings for both the Debug and Release builds.
  {% endhint %}

Once you are all set up, compile the PIDL file and if it is done successfully, you should see the output like below.

```
1>---— Start build: Project: ..., Configuration: Release Win32 ---—
1>Compiling TestC2C.pidl ...
1>The build log was saved to "...".
1>ProudNetTest_2005 - Error: 0, Warning: 0
========== Build: Success 1, Fail 0, Latest 0, Omit 0 ==========

```

Visual Studio 2005 and 2008 versions support[ **Custom Build Rules**](/proudnet.eng/proudnet/using_pn/pidl/using_pidl.md#custom-build-rules)**,** which are automatically set up each time you add a PIDL file without the need for custom build settings. However, Visual Studio 2010 and later versions can use <mark style="color:orange;">Build customizations.</mark>

<figure><img src="/files/Bfm8Gmis2PPIafNyX8kZ" alt=""><figcaption></figcaption></figure>

***

## 2. Linux

{% tabs %}
{% tab title="Ubuntu" %}
Example of installing the open source Mono library on Ubuntu\
※ The open-source Mono project supports Linux, Windows, and Mac OS.

```
$sudo apt-get install mono-gmcs
$sudo apt-get install mono-runtime
```

{% endtab %}

{% tab title="CentOS" %}
Example of installing the open source Mono library on CentOS\
※ The open-source Mono project supports Linux, Windows, and Mac OS.

```
$sudo yum install mono-devel
$sudo yum install mono-complete
```

{% endtab %}

{% tab title="Mono platform" %}
Example of running the PIDL compiler on the Mono platform

```
$pwd
/home/ProudNet/util
$mono PIDL.exe ../Sample/Simple/Common/*.pidl -outdir ./
```

{% endtab %}
{% endtabs %}

***

## 3. C\#

RMI is also available in the C# language, so the PIDL compiler also generates proxy and stub code for the C# language.

\
Running as follows generates the proxy and stub code for the C# language. (Existing -clr is the same as -cs.)

```csharp
PIDL.exe -cs <input-file-name>
```

It is recommended to use proxy and stub created in C# language as commonly used modules. As with PIDL, this module requires input of a PIDL file from a C# project and custom build.

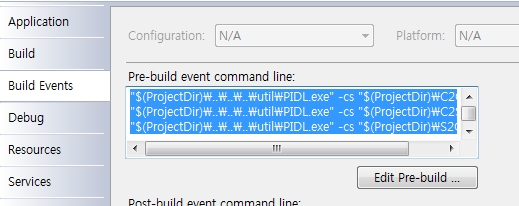

<figure><img src="/files/HaGuSESVBL6tYIK4SZmQ" alt=""><figcaption><p>Setting up a custom build for PIDL files in a C# project</p></figcaption></figure>

The proxy,stub generated after building <mark style="color:orange;">C2S.pidl</mark> is as follows.

* C2S\_common.cs
* C2S\_proxy.cs
* C2S\_stub.cs

Include these files in your C# project (<mark style="color:orange;">.csproj</mark>). However, these files are build output and should not be placed in source control (e.g. SVN, etc.), as you may get writing errors on read-only files.

We recommend opening the <mark style="color:orange;">.csproj</mark> file in an editor and modifying it as follows.

```csharp
<Target Name="BeforeBuild">
<ItemGroup>
<Compile Include="C2S_common.cs" />
<Compile Include="C2S_proxy.cs" />
<Compile Include="C2S_stub.cs" />
</ItemGroup>

</Target>
<Target Name="AfterBuild">
</Target>
```

{% hint style="info" %}
The proxy and stub generated in the C# language are the class with the same name as in C++, and the usage is the same.
{% endhint %}

### - Setting public, internal, and private for RMI proxy and stub class

The access modifiers for the proxy, stub, and common classes that the PIDL compiler generates are **internal** by default. These classes can be used from different sources within the same module (or assembly), but not from other modules.&#x20;

However, if you want to build a module that collects these classes separately and use the classes in this module in other modules, you may want to change the access modifier to **public**.

\
In this case, set the access modifier properties for the class that the PIDL compiler generates as follows.

```csharp
// This will let proxy, stub and common classes to have access modifier 'public'.
[marshaler(clr)=MyMarshaler, access=public]
global MyC2S 3000
{
    Foo(...);
}
```
